Core Technologies & Industrial Advantages

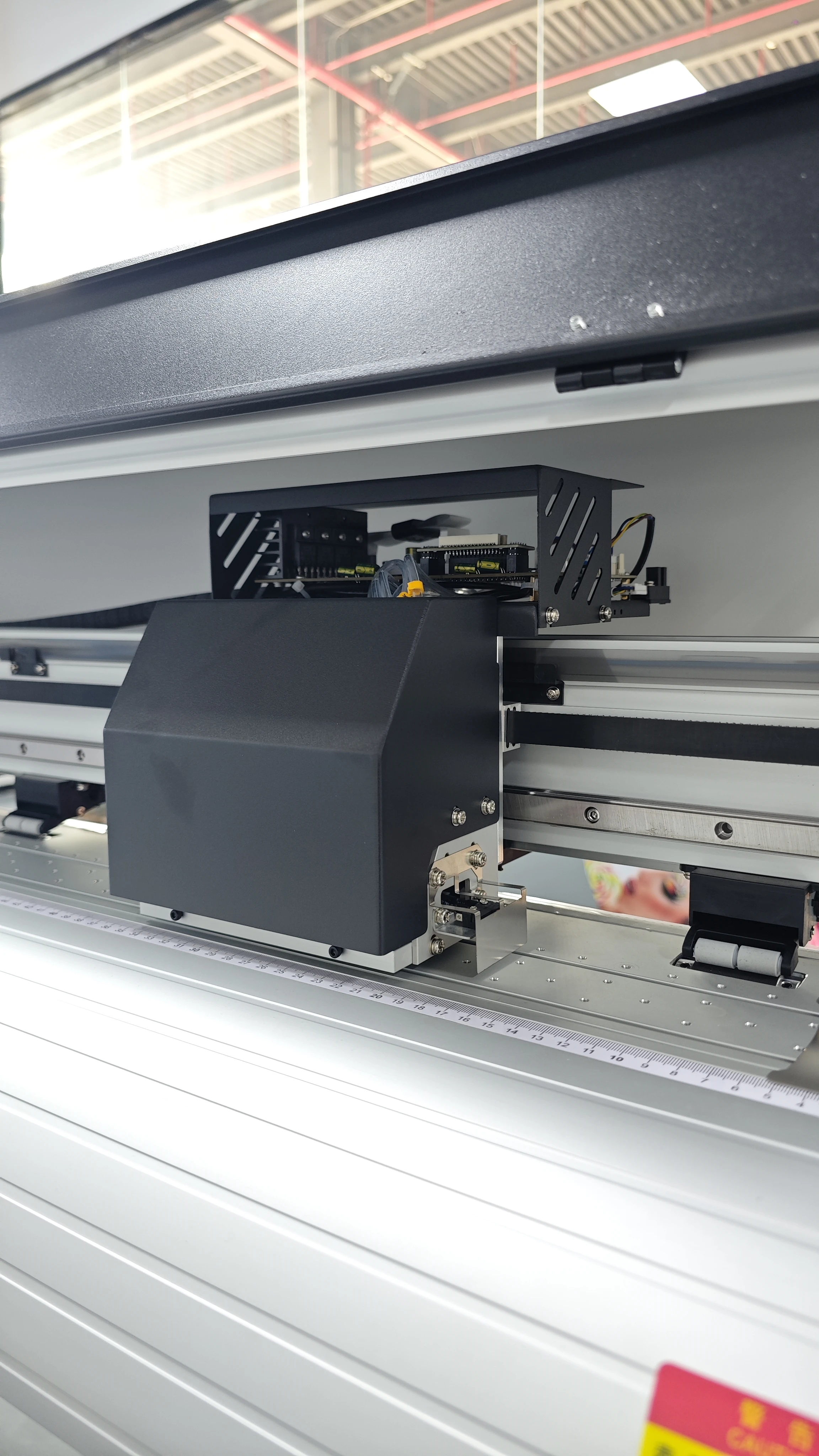

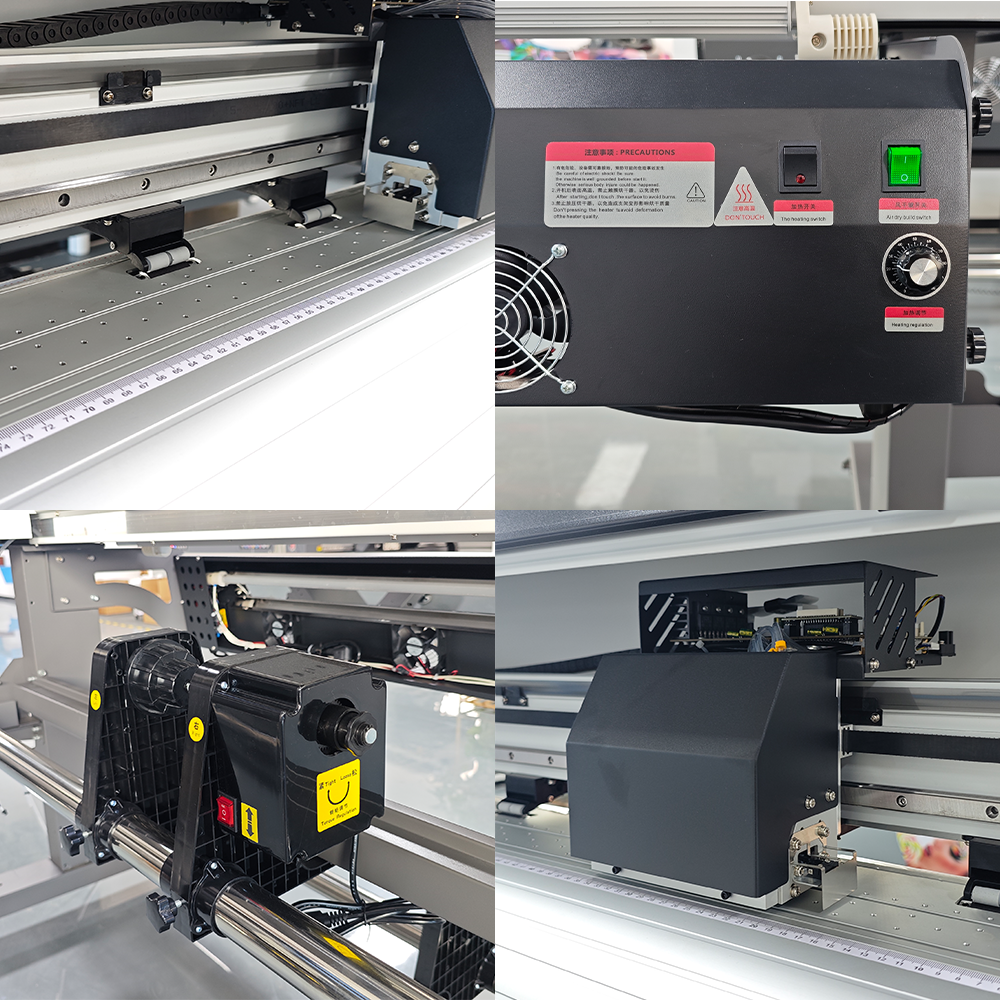

Intelligent Anti-Collision System
The printhead carriage is equipped with high-sensitivity anti-collision sensors. This provides real-time protection by detecting media warping or obstacles, instantly stopping movement to prevent physical damage to the costly printheads and ensuring safe operation.

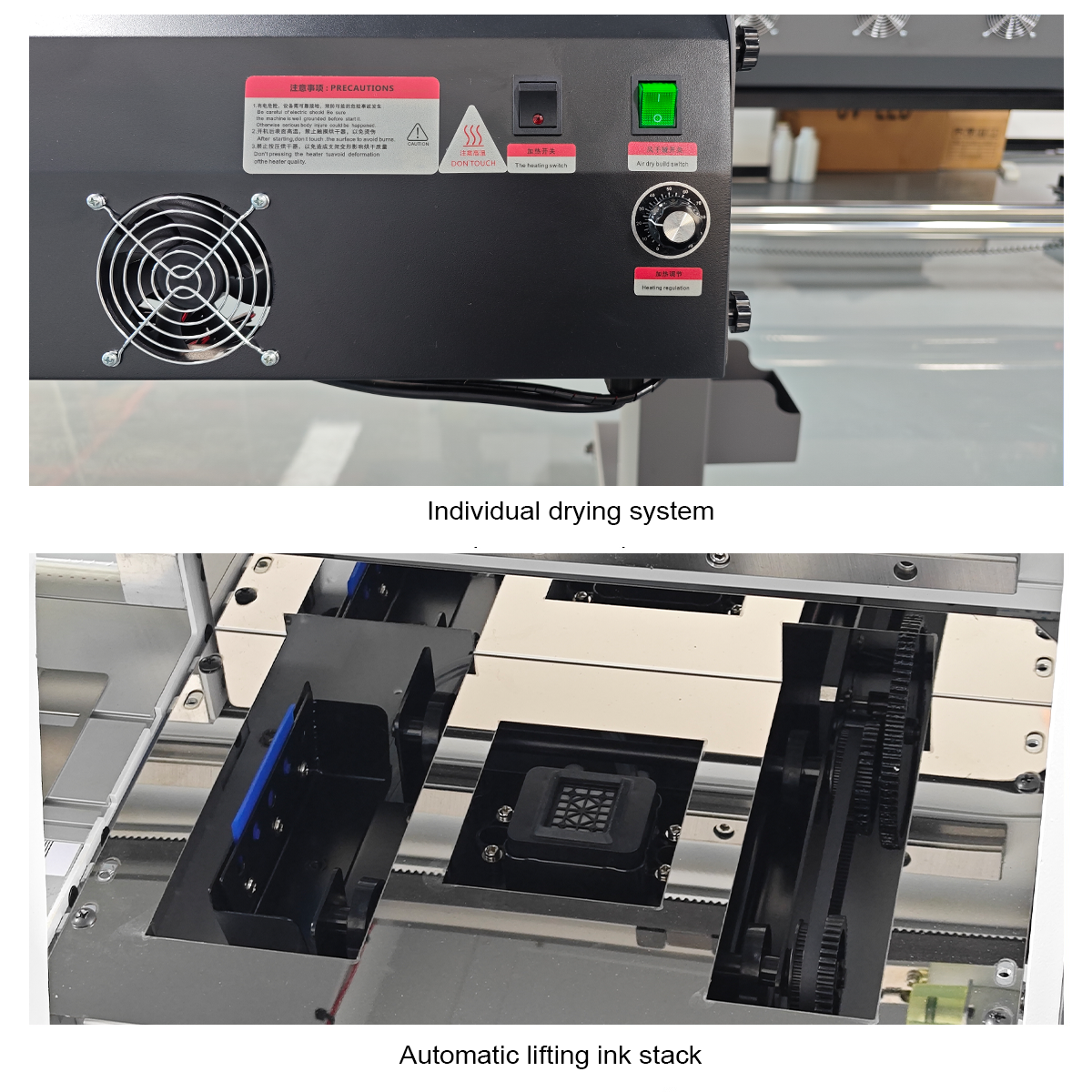

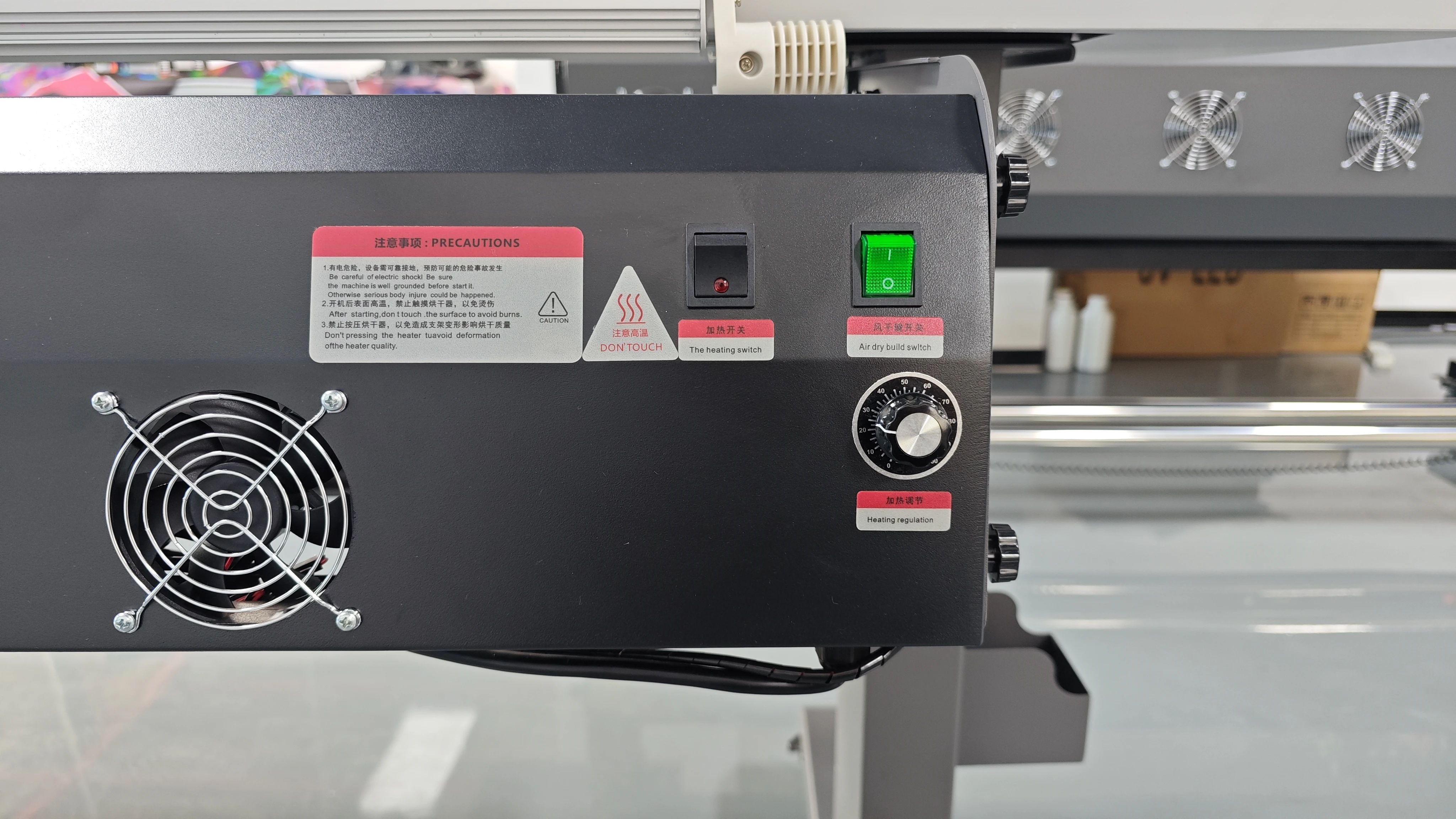

Integrated Drying & Heating Control
A centralized control panel manages the three-stage intelligent heating system (Pre/Print/Post) and the external air drying fans. This allows for precise temperature regulation tailored to different media types, ensuring optimal ink fixation and rapid drying even at peak speeds.

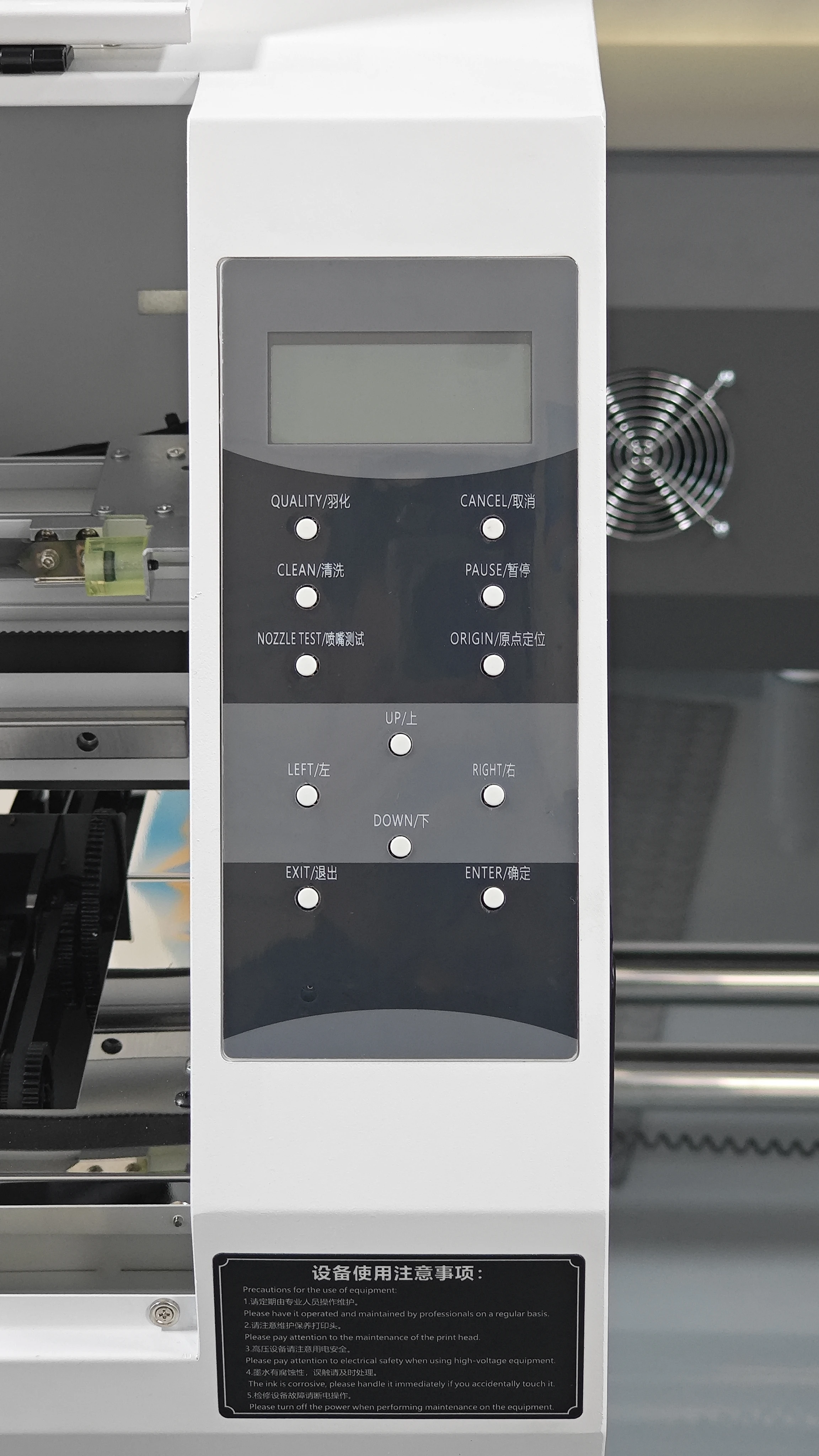

Intuitive LCD Operator Panel
The multi-function LCD panel provides a user-friendly interface for all daily operations. Operators can quickly perform nozzle tests, cleaning cycles, and origin adjustments with single-button commands, significantly reducing setup time and simplifying the production workflow.

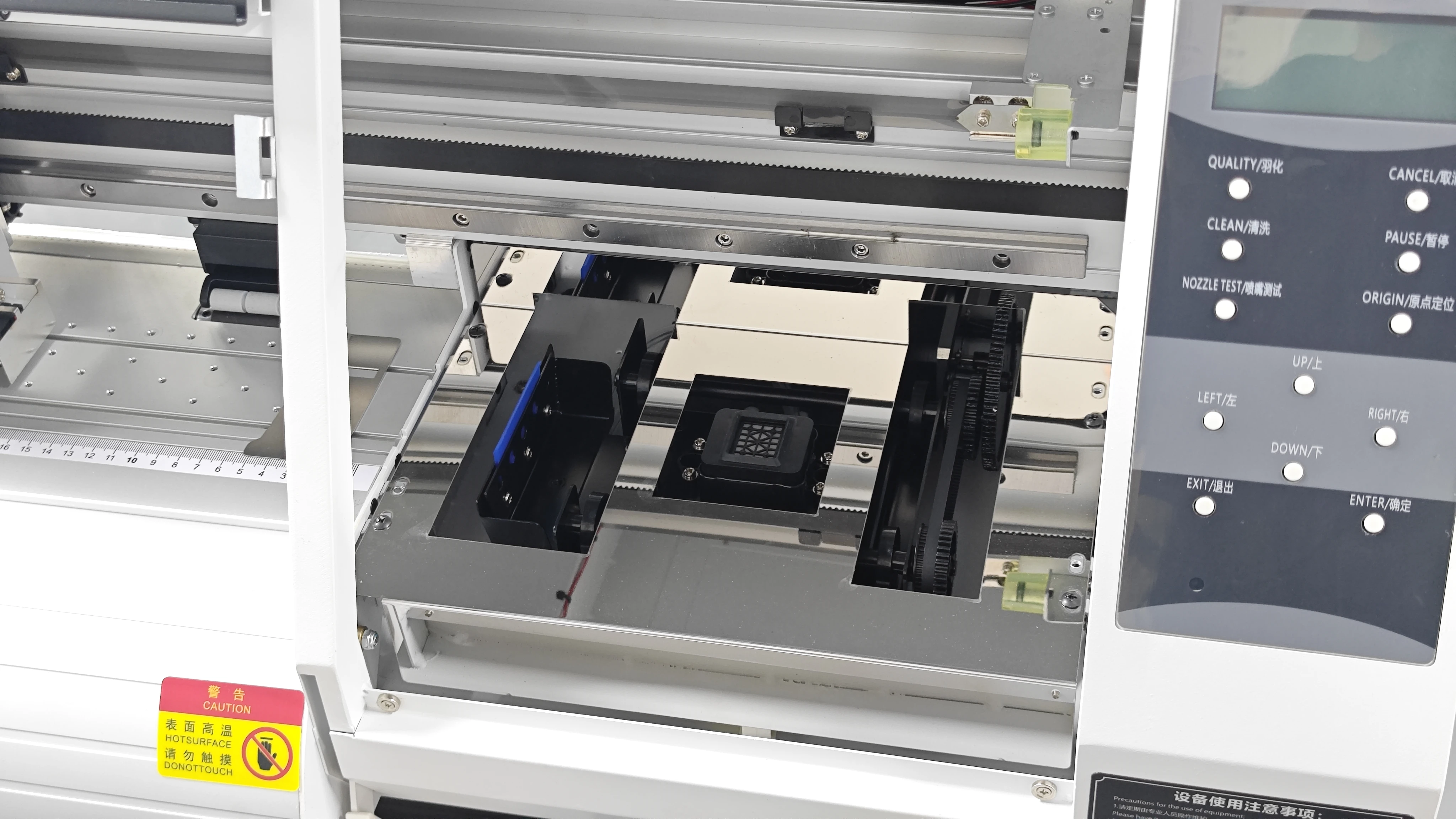

High-Precision Lifting Maintenance System
Equipped with an industrial-grade high-precision lifting ink stack, the system ensures perfect alignment and airtight sealing for the printheads. The advanced suction mechanism provides powerful and consistent ink draw during automatic cleaning cycles, effectively preventing nozzle clogging and ensuring peak performance for long-term industrial production.
High-Definition Printing Portfolio
Technical Specifications
| Model | SC-1901X1 | ||
| Maximum Print Size | 1900 mm (74.8") | ||
| Printhead Configuration | Epson i3200 | Epson i1600 | Epson XP600 |
| Printing Speed (4 Pass) | 23 ㎡/h | 14 ㎡/h | 11 ㎡/h |
| Printing Speed (6 Pass) | 16 ㎡/h | 8 ㎡/h | 7 ㎡/h |
| Printing Speed (8 Pass) | 10 ㎡/h | 6 ㎡/h | 5 ㎡/h |
| Ink Type | Eco-Solvent Ink / Water-based Ink | ||
| Drying System | Three-stage Heating (Pre/Print/Post) + External Drying Fan | ||
| Power Supply | AC 220V/110V ±10% | 50Hz/60Hz | 2500W | ||
| Operating Environment | Temperature: 22-28℃ | Humidity: 40%-60% | ||

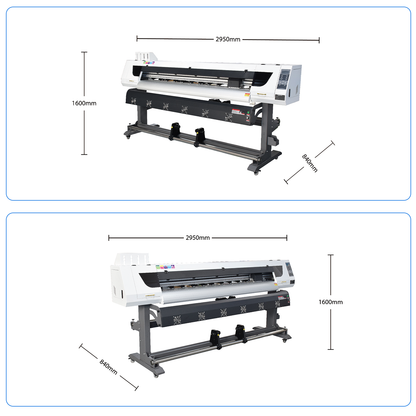

| Machine Dimensions | 2810 * 740 * 1370 mm | ||
| Packing Dimensions | 2900 * 690 * 630 mm | ||
| Weight (Net / Gross) | 160 kg / 180 kg | ||
| RIP Software | Maintop / Photoprint (Optional) | ||
FAQ
Yes. As a manufacturer, we have over a decade of exporting experience, with our printers having an extensive reach in over 100 countries worldwide.
Warranty Coverage: Our factory provides a one (1) year limited warranty on our products against defects in materials or workmanship under normal use.
What is Covered: We will supply new replacement parts free of charge for any qualified issues identified during the warranty period.
Exclusions: This warranty does not cover the following components, which are classified as consumables or wearing parts: Print head, Ink Pump & Ink Cartridges, Solenoid Valve, Cap Station, Ink Tubes & Dampers.
Shipping: All shipping costs for replacement parts are to be borne by the customer.
Remote Assistance: Get round-the-clock online training and troubleshooting from our professional technicians.
Comprehensive Installation Guides: Access detailed installation courses and documentation.
We guarantee to initiate shipment within 10 working days after we receive your payment.
The following payment methods are accepted:
- Alibaba Trade Assurance
- PayPal
- Telegraphic Transfer (T/T)
- Western Union
Absolutely. As a manufacturing factory, we welcome customization and can tailor our products to your exact needs.
Senchro Intelligent addresses the common challenge of poor color reproduction on dark fabrics in traditional digital printing, enhancing color saturation by more than 50%.
It accommodates small-batch, multi-variety, personalized, and short-run production demands without the need for plate making. With support for single-sheet printing, the entire process—from design to final product—can be completed in as little as two hours.
The system employs water-based white ink that is VOC-free and complies with EU OEKO-TEX® standards, ensuring outstanding environmental performance.
With broad application versatility, it is suitable for apparel such as T-shirts and hoodies, as well as cultural and creative products including canvas bags, phone cases, and home decorations (e.g., pillows and curtains). It also provides flexible, small-batch customization solutions for film and TV merchandise, gaming collaborations, and celebrity endorsement products.
Yes, we would be delighted to host you for complimentary training.
